Per pixel lighting example

by Hugh Sorby / Auckland Bioengineering Institute

Cmgui Model

Download

Description

CMISS can now use the ARB Vertex program and ARB Fragment program OpenGL extensions to provide per pixel lighting. This shading is a vast improvement over the equivalent lighting with standard Gouraud shading, the specular highlights are very sharp and move smoothly across the surface instead of being starlike and blurry. Code has also been added to support bump texture maps.

Use It

Download the model and adapt the Cmgui model code for OpenCMISS-Zinc, if necessary. Most of the Cmgui examples can be translated into Zinc code (not all since there are a few features in Cmgui which are not exposed in, or part of the Zinc Library). With few exceptions the object names in Cmgui are the same as in Zinc.

Inputs Used

Comfile

per_pixel_lighting.com

{
    #Example per_pixel_lighting.com:  Using per pixel lighting in CMISS.

    # Using ARB Vertex programs and ARB Fragment programs per pixel lighting has
    # been added into CMISS.  This example demostrates how to use these features.
    # These examples have been tested on an NVIDIA FX card with Linux drivers 53.36
    # and on Mesa3D 6.0 with a few patches (which have been submitted to the Mesa3D project).

    $discretisation = "6*6*6";
    $circle_discretisation = "12";

    gfx read node $example/full_heart_press_0_def.exnode time 0;
    gfx read element $example/full_heart_press_0_def.exelem;

    gfx cre egroup septum add 9000014..9000021,9000032..9000034,9000037,9000043,9000051..9000052;
    gfx cre egroup rv_free add 9000022,9000026,9000023..9000025,9000027,9000036,9000045..9000050,9000055;
    gfx cre egroup lv_free add 9000004..9000013,9000028,9000029,9000030,9000031,9000035,9000039,9000040,9000041,9000042,9000053,9000054,9000057,9000059,9000061..9000062,9000065..9000069;

    #gfx cre egroup base_skeletal add 9000082,9000083,9000084,9000085,9000086,9000087,9000088
    gfx cre egroup base_skeletal_outer add 9000001,9000004,9000009,9000041,9000048..9000050,9000055..9000058,9000081;
    gfx cre egroup base_skeletal_lower add 9000032..9000034,9000051..9000052;
    gfx cre egroup base_muscle add 9000001,9000004,9000009,9000032..9000034,9000041,9000048..9000052,9000055..9000058,9000081;

    gfx read node $example/MRP01.exnode;
    gfx read element $example/MRP01.exelem;
    gfx read element $example/MRP01_base.exelem;

    gfx define field scaling_deformed scale field deformed scale 2.0 2.0 2.0;
    gfx define field scaling_coordinates scale field coordinates scale 2.0 2.0 2.0;

    gfx create texture heart_wall image $example/rc_text2.jpg mod;
    gfx create material muscle diffuse 0.9 0.1 0.0 ambient 0.5 0 0 specular 0.6 0.6 0.6 shininess 0.95;
    #gfx create material muscle texture heart diffuse 0.9 0.9 0.9 ;
    gfx create material skeletal ambient 0 0 0 diffuse 1 0.3 0.23 emission 0 0 0 specular 0.3 0.3 0.3 alpha 1 shininess 0.3

    # Map the 3D coordinates into cylindrical texture coordinates.  The texture coordinates have a seam where
    # they wrap from 1 back to -1, I have aligned this with the seam at the edge of the texture.
    gfx define field cylindrical_texture_coordinatesA coordinate_system rectangular_cartesian offset field coordinates offsets 0 0 -99.9464;
    gfx define field cylindrical_texture_coordinatesB coordinate_system rectangular_cartesian composite cylindrical_texture_coordinatesA.2 cylindrical_texture_coordinatesA.1 cylindrical_texture_coordinatesA.3
    gfx define field cylindrical_texture_coordinatesC coordinate_system rectangular_cartesian scale field cylindrical_texture_coordinatesB scale_factors 1.0 -1.0 1.0;
    gfx define field cylindrical_texture_coordinatesD coordinate_system cylindrical_polar coordinate_transformation field cylindrical_texture_coordinatesC;
    gfx define field cylindrical_texture_coordinatesE coordinate_system rectangular_cartesian composite cylindrical_texture_coordinatesD.2 cylindrical_texture_coordinatesD.3 cylindrical_texture_coordinatesD.1;
    gfx define field cylindrical_texture_coordinatesF coordinate_system rectangular_cartesian scale field cylindrical_texture_coordinatesE scale_factors -0.159155 -0.0123 0.03;
    gfx define field cylindrical_texture_coordinates coordinate_system rectangular_cartesian offset field cylindrical_texture_coordinatesF offsets -0.5 0 0;


    gfx modify g_element heart general clear;
    gfx modify g_element lv_free general clear element_discretization $discretisation;
    gfx modify g_element lv_free surfaces coordinate scaling_deformed face xi3_0 select_on material muscle selected_material default_selected render_shaded;

    gfx modify g_element rv_free general clear element_discretization $discretisation;
    gfx modify g_element rv_free surfaces coordinate scaling_deformed face xi3_0 select_on material muscle selected_material default_selected render_shaded;

    gfx modify g_element septum general clear element_discretization $discretisation;
    gfx modify g_element septum surfaces coordinate scaling_deformed face xi3_0 select_on material muscle selected_material default_selected render_shaded;
    gfx modify g_element septum surfaces coordinate scaling_deformed face xi3_1 select_on material muscle selected_material default_selected render_shaded;

    gfx modify g_element wall general clear element_discretization $discretisation;
    #gfx modify g_element wall cylinders circle_discretization $circle_discretisation coordinate scaling_deformed constant_radius 0.3 select_on material default selected_material default_selected;
    gfx modify g_element wall surfaces coordinate scaling_deformed select_on material muscle texture_coordinates cylindrical_texture_coordinates selected_material default_selected render_shaded exterior;

    gfx modify g_element base_muscle general clear;
    gfx modify g_element MRP01 general clear;

    gfx modify g_element base_skeletal general clear element_discretization $discretisation;
    gfx modify g_element base_skeletal surfaces coordinate scaling_coordinates select_on material skeletal selected_material default_selected render_shaded

    gfx modify g_element base_skeletal_outer general clear element_discretization $discretisation;
    gfx modify g_element base_skeletal_outer surfaces coordinate scaling_coordinates face xi2_1 select_on material skeletal selected_material default_selected render_shaded
    gfx modify g_element base_skeletal_outer surfaces coordinate scaling_coordinates face xi2_1 select_on material muscle selected_material default_selected render_shaded

    gfx modify g_element base_skeletal_lower general clear element_discretization $discretisation;
    gfx modify g_element base_skeletal_lower surfaces coordinate scaling_coordinates face xi2_1 select_on material skeletal selected_material default_selected render_shaded
    gfx modify g_element base_skeletal_lower surfaces coordinate scaling_coordinates face xi2_1 select_on material muscle selected_material default_selected render_shaded

    # Normal gouraud shading.  Next create a window and render this normally.
    # We can see the Gouraud shading artefacts most clearly on the specular highlights
    # which have been stretched into star like patterns.

    gfx create window 1;
    gfx modify window 1 view parallel eye_point -446.961 -114.755 -5.34199 interest_point 4.41712 7.8208 115.947 up_vector 0.217583 0.152671 -0.964028 view_angle 28.5452 near_clipping_plane 4.83196 far_clipping_plane 1726.78 relative_viewport ndc_placement -1 1 2 2 viewport_coordinates 0 0 1 1;

    # Per Pixel Lighting.
    # If supported by your OpenGL implementation the muscle material will change to per pixel lighting.
    # Currently the implementation is equivalent to the old model of point lighting, so we shift the
    # point light to a position which gives lighting similar to the default directional light.
    # Notice the defined specular highlights and how they move as you rotate the model.
    gfx modify material muscle per_pixel_mode;
    gfx modify light default point position 0 100 -100;
    if ($TESTING)
      {
    	 gfx print win 1 file per_pixel.jpg;
      }

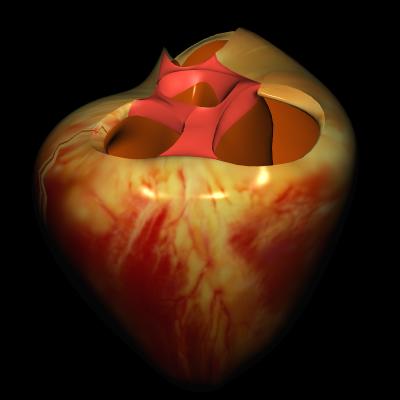

    # Texturing
    # We can add textures into this model.  Currently this only supports the equivalent of the old modulate
    # texture mode, so we change the background material to white so that the modulated texture is equivalent
    # to the texture.  Notice how the specular highlights are visible on this textured model unlike with
    # standard OpenGL as in our Fragment Program implementation these are added on to the textured colour,
    # whereas the specular highlights on the standard OpenGL implementation are just added to the colour
    # prior to texturing and lost.

    gfx modify material muscle per_pixel_mode texture heart_wall diffuse 1 1 1 ambient 0.1 0.1 0.1;
    if ($TESTING)
      {
    	 gfx print win 1 file per_pixel_texture.jpg;
      }

    # We can also specify any arbitrary program strings,
    # this requires to you write all the graphics operations yourself but gives
    # you complete flexibility.  Be aware that changes to cmgui could break your
    # programs in their assumptions about input variables and so you may have to migrate
    # your changes occasionally.
    CORE::open VPFILE, "<$example/vp.txt";
    @vp = ;
    CORE::open FPFILE, "<$example/fp.txt";
    @fp = ;
    #The last line of fp.txt is modified to reorder the colours so that this material
    #is greeny coloured and therefore different from the standard per pixel texturing.
    gfx modify material muscle vertex_program_string join("",@vp) fragment_program_string join("",@fp);

    if ($TESTING)
    {
        #Check commands allow updating of some parts correctly
    	gfx mod material muscle;
    	gfx mod material muscle vertex_program_string join("",@vp);
    	gfx print win 1 file per_pixel_user_program.jpg;
    }

    # Change back to normal lighting to see the difference
    gfx modify material muscle normal_mode;

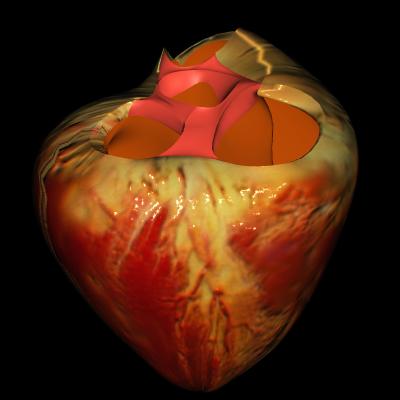

    # Bump mapping
    # Now that we have per pixel control over the lighting in the fragment program we can modulate
    # the surface normal with a normal map.  This normal map I produced in Gimp from the colour texture
    # using the Filter->Map->Normal_map plugin from http://nifelheim.dyndns.org/~cocidius/normalmap/
    # A normal map uses the colour channels to specify variations in normal direction from the surface
    # coordinates.

    gfx create texture heart_wall_normal_map image $example/rc_text2_normalmap.jpg;
    gfx modify material muscle per_pixel_mode texture heart_wall secondary_texture heart_wall_normal_map bump_mapping;
    if ($TESTING)
      {
    	 gfx print win 1 file per_pixel_texture_bump.jpg;
      }

    # The rapidly varying texture map adds an organic and wet quality to the model.
    # As the normal map is actually based on the colour image rather than a real height field it is
    # actually incorrect but if we had a height map for our model that could be used to make the
    # normal map instead.


    }
